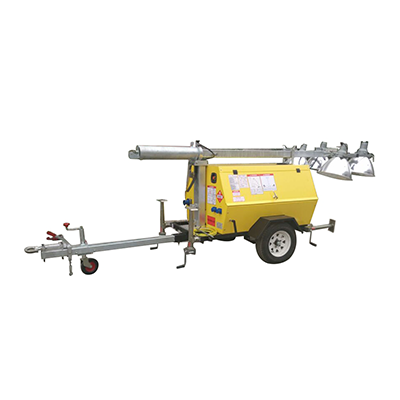

ALM-4000-7

Frequency:50HZ/60HZ
Rated current:≤8000A
Engine
EngineThree cylinders in line,Water cooled,Four stroke
Make/ModelKubota D1105 or D905
CoolingWater
Output(Continuous)7.8-10.1kW/1500-1800Rpm
Revolution(RPM)1500/1800
Fuel Capacity(L)100
Number of Cylinders(Displacement)3(0.989-1.123)
Engine shutdown protectionLow oil pressure, Hight water tempreture


Alternator
Make/ModelBrushless Maintenance Free AC alternator
Output(Primary) 8kVA
Phase numberSingle Phases
Frequency50/60HZ
Voltage output220V
InsulationH
Type of bearing/BrushSingle/Brushless Self excitation
Available Receptacles220V AC receptacle


Lighting
LightingMH, 1000W
Lamp No.4×1000W
Lamp type Metal Halide lamp
Illuminating Field 5 to 7 acres
Housing MaterialsAluminum


Mast Tower
TypeMulti-Sections Telescoping mast
Total Height9 M
Rotation360 Degree
Mast Sections3 Sections
Operate for Extends and LiftsManual Winch


Outriggers
Trailer/CabinetWith 5 points manual outriggers extended and all jack down
Fork pocket and central lift pointYES
Wheel and Rim185R/14''
Trailer Suspension System Steel plate spring
Towing TypeRing or Ball hitch
CabinWith two doors access for easy maintenance with hanger for handling Detachable Roof,Silent type


Electric-Shutdown protection
ElectricMCCB-MCB Emergency Stop
ConnectionIP65
Weight900KG
Loading6 units can be loaded in a 20'GP
Dimention for shipping1850×1450×1680MM(Pack by Plastic)
Gurantee1000 running hours or 1 year when the customer receive the goods
Delivery Time :35 Days or 5 weeks when the seller received down payment from the buyer Warranty1000 running hours or 1 year from shipment
Freight Insurance
Price Validity 90 DaysBank Charge
Payment:TT or Irrevocable L/C
