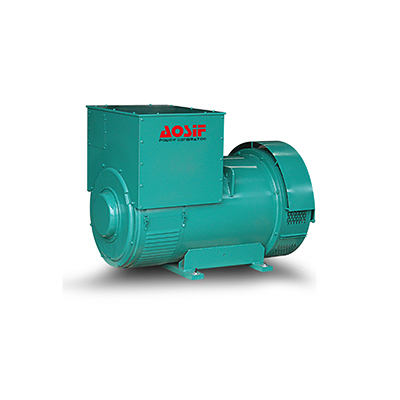

Alternator

Frequency:50HZ/60HZ

Rated Power:2170kw

INSULATION	PROTECTION		PITCH		VOLTAGE		THD		THF		TIF
REGULATION
H	IP23		2/3		± 1%		<4%		<2%		<50
	RATING TABLE
Working condition	50Hz/1500RPM/PF 0.8				60Hz/1800RPM/PF 0.8
TEMP.	Cont. 40℃		Standby.40℃		Cont. 40℃		Standby.40℃		Cont. 40℃		Standby.40℃
SERIES STAR	400V				440V				480V
PARALLEL STAR	200V				220V				240V
SERIES DELITA	230V				254V				277V
MODEL	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA
AA-6-4	6	7.5	7	9	8	10	9	11	8	10	9	11
AA-8-4	8	10	9.5	12	11	13	11	14	11	13	11	14
AA-10-4	10	13	11.8	15	13	16	14	18	13	16	14	18
AA-12-4	12	15	14	18	15	19	17	21	15	19	17	21
AA-14-4	14	18	15.4	19	17	21	19	23	17	21	19	23
AA-18-4	18	23	20	25	22	27	24	30	22	27	24	30
AA-20-4	20	25	22	28	24	30	26	33	24	30	26	33
AA-22-4	22	28	24.8	31	26	33	30	37	26	33	30	37
AA-25-4	25	31	28	35	30	38	34	42	30	38	34	42
AA-28-4	28	35	31	39	34	42	37	47	34	42	37	47
AA-30-4	30	38	33	41	36	45	40	50	36	45	40	50
AA-32-4	32	40	35	44	38	48	42	53	38	48	42	53
AA-34-4	34	43	38	48	41	51	45	56	41	51	45	56
AA-40-4	40	50	44	55	48	60	53	66	48	60	53	66
AA-45-4	45	56	50	63	54	68	60	74	54	68	59	74
AA-50-4	50	63	55	69	60	75	66	83	60	75	66	83
AA-54-4	54	68	60	75	65	81	71	89	65	81	71	89
AA-58-4	58	73	65	81	70	87	77	96	70	87	77	96
AA-64-4	64	80	70	88	77	96	85	106	77	96	85	106
AA-68-4	68	85	75	94	82	102	90	112	82	107	94	118
AA-75-4	75	94	82	103	90	113	100	124	95	118	104	130
AA-80-4	80	100	88	110	96	120	106	132	100	125	110	138
AA-90-4	90	113	100	125	108	135	119	149	113	141	119	155
AA-100-4	100	125	110	138	120	150	132	165	125	156	138	172
AA-112-4	112	140	123	154	134	168	147	185	140	174	154	192
AA-120-4	120	150	132	165	144	180	160	198	150	188	165	206
AA-128-4	128	160	140	175	154	192	170	211	160	201	176	221
AA-140-4	140	175	154	193	168	210	185	231	175	219	193	241
AA-150-4	150	188	165	206	180	225	200	248	188	234	206	258
AA-160-4	160	200	176	220	192	240	211	264	200	250	220	275
AA-180-4	180	225	200	250	216	270	238	297	225	281	248	309
AA-200-4	200	250	220	275	240	300	265	330	250	313	275	344
AA-220-4	220	275	242	303	264	330	290	363	272	340	299	374
AA-240-4	240	300	264	330	288	360	305	381	297	371	327	408
AA-250-4	250	313	275	344	300	375	330	413	309	387	340	425
AA-260-4	260	325	286	358	312	390	343	429	322	402	354	442
AA-280-4	280	350	308	385	336	420	370	462	346	433	381	476
AA-300-4	300	375	330	413	360	450	400	495	371	464	408	510
AA-320-4	320	400	352	440	384	480	422	528	396	495	435	544
AA-360-4	360	450	400	500	432	540	475	593	445	557	490	612
AA-400-4	400	500	440	550	480	600	528	660	500	625	550	688
AA-430-4	430	538	473	591	516	646	568	711	538	672	591	739
AA-450-4	450	563	500	625	540	676	600	744	563	703	619	773
AA-480-4	480	600	528	660	576	720	634	792	600	750	660	825
AA-500-4	500	625	550	688	600	750	660	825	625	781	688	859
AA-520-4	520	650	572	715	624	780	686	858	650	813	715	894
AA-540-4	540	675	594	743	648	810	713	891	675	844	743	928
AA-560-4	560	700	616	770	672	840	739	924	700	875	770	963
AA-600-4	600	750	660	825	720	900	800	990	750	938	825	1031
AA-640-4	640	800	704	880	740	925	814	1018	760	950	836	1045
AA-720-4	720	900	800	1000	850	1063	935	1169	880	1100	968	1210
AA-800-4	800	1000	880	1100	930	1163	1023	1279	960	1200	1056	1320
AA-900-4	900	1125	990	1238	1050	1313	1155	1444	1080	1350	1188	1485
AA-1000-4	1000	1250	1100	1375	1160	1450	1276	1595	1200	1500	1320	1650
AA-1100-4	1100	1375	1210	1513	1280	1600	1408	1760	1320	1649	1452	1814
AA-1200-4	1200	1500	1320	1650	1400	1750	1540	1925	1440	1800	1584	1980
AA-1250-4	1250	1563	1375	1719	1400	1750	1540	1925	1460	1825	1606	2008
AA-1350-4	1350	1688	1485	1856	1520	1900	1672	2090	1580	1975	1738	2173
AA-1520-4	1520	1900	1672	2090	1700	2125	1870	2338	1770	2213	1947	2434
AA-1650-4	1650	2063	1815	2269	1830	2288	2013	2517	1910	2388	2101	2626
AA-1800-4	1800	2250	1980	2475	2000	2500	2200	2750	2080	2600	2288	2860
AA-1830-4	1830	2288	2013	2516	2080	2600	2288	2860	2170	2713	2387	2984
MODEL	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA	KW	KVA
SERIES STAR	400V				440V				480V
PARALLEL STAR	200V				220V				240V
SERIES DELITA	230V				254V				277V
TEMP.	Cont. 40℃		Standby.40℃		Cont. 40℃		Standby.40℃		Cont. 40℃		Standby.40℃
Working condition	50Hz/1500RPM/PF 0.8				60Hz/1800RPM/PF 0.8
1、the above parameters change due to technological progress, AOSIF to explain this all.
2、if need other detailed parameters, please refer frome aosif.
