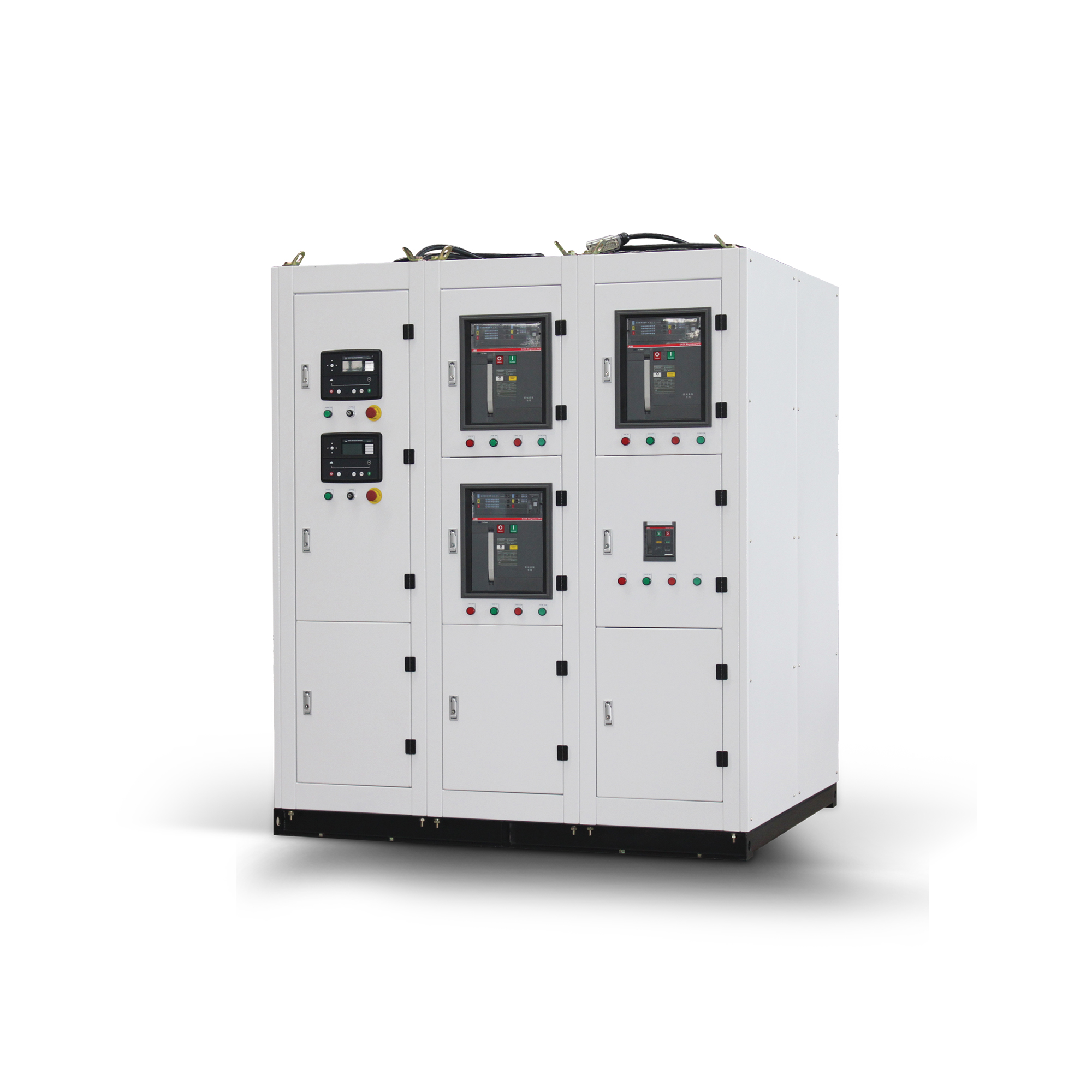

| AOSFI GRID SYNCHRONIZATION | ||||||
| power (kW) | current | controller | breaker model (made in china) | Schneider | ABB | （L*W*H) |
| P≤125KW | 63A-250A | DSE8620 | XKM1-R250-3P | NSX250F-250D | T3R250 3P | 800×800*1700 |
| 125KW＜P≤200KW | 400A | DSE8620 | XKM1-400S -3p | NSX400F-400A | T5R400 3P | 800×800*1700 |
| 220＜P≤318KW | 630A | DSE8620 | XKM1-630S-3p | NSX630F-630A | T6R630 3P | 800×800*1700 |
| 318＜P≤400KW | 800A | DSE8620 | XKM1-800S-3p | NS800N-800A | T6 R800 3P | 800×800*1700 |
| 400＜P≤500KW | 1000A | DSE8620 | XKM1-1000S-3p | NS1000N-1000A | T7S1000M 3P | 800×800*1700 |
| 500＜P≤630KW | 1250A | DSE8620 | XKW1-1600/1250-3P | NS1250N-1250A | T7S1250M3P | 800×800*1700 |
| 630＜P≤800KW | 1600A | DSE8620 | XKW1-1600/1600-3P | NS1600N-1600A | T7S1600M 3P | 800×800*1700 |
| 800＜P≤1000KW | 2000A | DSE8620 | XKW1-2000/2000-3P | MT20N-2000A 2.0 | E2R2000 3P | 800×800×2100 |
| 1000＜P≤1250KW | 2500A | DSE8620 | XKW1-3200/2500-3P | MT25N-2500A 2.0 | E3 R2500 3P | 800×800×2100 |
| 1250＜P≤1600KW | 3200A | DSE8620 | XKW1-3200/3200-3P | MT32N-3200A 2.0 | E3 R3200 3P | 800×800×2100 |
